FEATURES:
• Made In The USA
• Color: Dewalt Trademark Yellow
• Size: Large

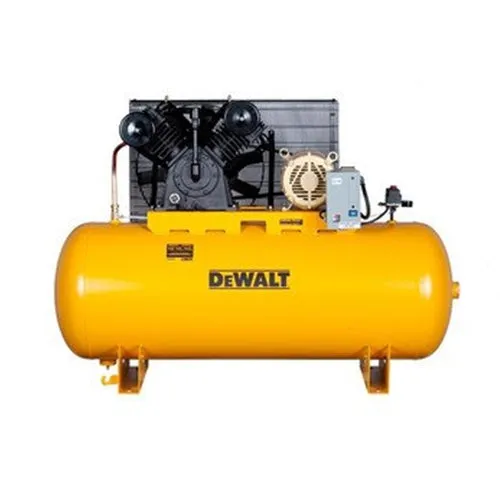

SPECIFICATIONS:
• Tank Size: 120 Gallon
• Horse Power: 10.0 HP
• Voltage: 230/460
• Engine Type: 3 Phase Induction Motor
• Drive Type: Belt Drive
• Air Consumption: 35.0 SCFM @ 100 PSI/33.6 SCFM @ 175 PSI
• Max PSI: 175 PSI
• Lubrication: Oil Lubricated
• Manufacturer Warranty: 2 Year Pump, 1 Year Other Parts
• Single or 2 Stage: Two

Patented Pump Design Provides for a Cooler Running Pump~Patented piston design for improved compression efficiency~Cast iron cylinder head with patented deep-grove directional cooling fins~Precision bored cylinders with patented asymmetrical cooling fins~Balanced flywheel with large glass-filled composite fan for improved pump cooling~Industrial performance delivers maximum CFM @ 175 PSI; provides enough power to operate more than one air tool or device at one time~Baldor three phase industrial class motor~4 pole, 1750 RPM, UL certified, NEMA rated~Large capacity 120 gallon ASME** certified tank~Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs~Supported by our Toll Free Customer Help Line
